The motor comprehensive performance test bench is mainly used to test the input voltage, input current (AC/DC), input electric power, power factor (AC) of the motor; output torque (rated torque, stall torque, starting torque, maximum rotation torque, etc.), output speed, output mechanical power; efficiency; temperature rise, vibration, noise, etc. Type test and factory test can be carried out to evaluate the comprehensive performance of the motor and provide accurate parameter basis for the research and development, production, maintenance and field application of the motor. The motor comprehensive performance test bench can test all kinds of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, etc.

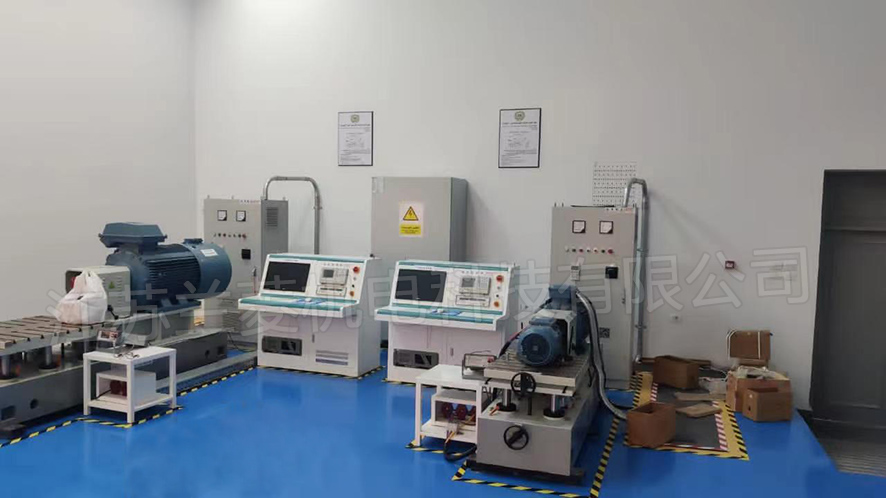

This type of motor test bench is mainly composed of the motor under test, torque and speed sensor, simulated load (magnetic powder brake, eddy current brake, hysteresis brake, motor, etc.), installation platform, connecting fixture, measurement and control system (instrument, software, etc.), electrical control system, etc.

The test process can be loaded manually or automatically, the test results can generate customized test reports, curve charts, etc., and the process data can be generated into Word, Excel or PDF format files, and the data can be saved, edited, printed, etc. The interface of the test system is simple and easy to upgrade and maintain. The company trains operators for free, and provides guidance on use and maintenance.

Users can choose test items according to specific requirements:

¡óEfficiency test

¡óLoading test

¡óStall test

¡óNo-load test (calculation of three-phase current unbalance)

¡óTemperature rise test (vibration, noise, etc.)

¡ó DC resistance measurement (calculation of three-phase resistance unbalance)

¡óInsulation resistance measurement

¡óPower frequency withstand voltage test

¡ó Turn-to-turn withstand voltage test

¡óCogging torque test

Specific test items can be communicated or customized by both parties, and the technical support telephone number is 400-111-3688.

Representative clients: ABB, Siemens, Tamagawa, Aerospace Science and Industry, Jiamusi Electric Machinery Factory, etc.

Lanmec Technology's various test benches, dynamometers and other customers are located in aerospace, aviation, ship mooring, weapons, petroleum, scientific research institutions, colleges and universities, testing institutions, etc., and are exported to the United States, Germany, Italy, Turkey, Chile, India, etc. Country, welcome to call us!
